Top of the line Surveillance for a fraction of the price - Autofocus
White base is default choice if you don't pick one.  Estimate up to 1 week delivery without Rush order.

ClearPTZ AutoFocus Camera

Click on Thumbnail for larger image

Autofocus (automatic focus)
27x optical zoom  automatic focus (optical zoom is much better than digital zoom)




Two Versions/Choices Available:

1)  Autofocus Clear P T Z- 500 feet    (Can be located up to 500 feet from PC)

Buy   More information   $599.99


2)
Autofocus Clear P T Z - Regular   (most popular)

Buy   More information   $599.99


After your order Don't forget the FREE Secrets of Credit Scores
Send me the confirmation of your order and I will send you the Free E-book
click here to send email

What good is optical zoom without pan/tilt and auto focus?

For the price of a motorized zoom camera, get pan/tilt and auto focus as well. Priced under $700, the Clear P T Z is a pan/tilt/zoom and auto focus color camera that handily meets the needs of business owners looking for security monitoring.    Under $700, the 321cam's Autofocus Cear P T Z is a pan/tilt color camera with exceptionally crisp video, auto-focus, and amazing long-distance zoom. You use it with a Windows computer for surveillance, video-conferencing, webcamming, or custom applications.

Though geared towards surveillance users, Autofocus Clear P T Z also makes an excellent video-conferencing camera and can serve as a high-end choice for webcamming users. In fact, thanks to a unique feature in the control software, you can feed Autofocus Clear P T Z's video to any Windows software designed to work with ordinary USB webcams, making it easy to use Autofocus Clear P T Z with all popular web-based webcam and video-chat software.    Rush Order available.

Test It Out.
1) click on Live Cams
2) login
3) in search box type      ptz

Pan/Tilt/Zoom Control

Autofocus Clear P T Z's robotic pan/tilt motion means you can keep an eye on large areas with just one camera. Turn the camera in any direction with just a mouse-click from the controlling computer. Zoom in and out as you need to. The high-quality optics and autofocus in Autofocus Clear P T Z mean image quality is always crisp and clear. Pan/tilt/zoom can also be remotely controlled over the Internet.

Optical Zoom

Autofocus Clear P T Z will surprise you with the quality of its video. The reason is optical zoom. Autofocus Clear P T Z has a zoom lens inside that physically moves to zoom in or out, like a pair of binoculars. Most computer cameras just simulate zoom by digitally magnifying an image via software. The result is graininess and loss of resolution. Autofocus Clear P T Z's zoom is good enough to let you read newsprint from across a room.

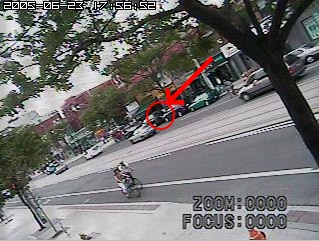

1st picture is Not Zoomed.  (see red arrow before zoom)



2nd picture is Zoomed.    Notice you can read the license plate?   Pretty cool....   Very High Tech....

Low-Light

Also unlike most computer cameras, Autofocus Clear P T Z gives you good performance in low-light conditions. It even has a night-time mode.


CONNECTIONS:
Up to 5 feet Away from Computer
Buy this one (500 feet connection)

a)  The Base connects to your computer using a USB port and external power supply (included)..
b)  The Camera connects to your computer's analog capture card (similar card as PC's that allow you to watch TV on the PC).  Or you can order a capture card below for $70 (this is our approved card).
c)  You will also need an analog video cable to connect the camera and the analog capture card (not included).

CONNECTIONS:
Up to 500 Feet Away from ComputerBuy this one (most common)

USB and Firewire cameras cannot be more than a few feet away from the computer used to view their video. Autofocus Clear P T Z-500 is an analog camera and can be up to 500 feet away from the computer. Mount the camera in one room and view video on a computer in another. Install several cameras around a building connected to one computer. Autofocus Clear P T Z-500 gives you the flexibility to mount your camera where you want to.

a)  The PC connects to a black box via USB cable (3-4 feet cable).
b)  Cat-5 network cable runs between the black box on the PC end and a 2nd black box on the camera end (up to 500 foot cable).
c)  The Base connects to your 2nd black box using a USB port and external power supply (included).
d)  The Camera connects to the PC using a standard analog video cable (up to 500 foot cable not included).

Don't forget your Analog Capture Card...



Bundled Surveillance Software

The advanced surveillance software Multi-Cam is bundled free with Autofocus Clear P T Z. It offers automated image capture, motion-triggered capture, and a range of other features important to surveillance users. You can also log in remotely over the Internet to view live video or captured surveillance and to remotely control the pan/tilt/zoom.

Compatible with Video-Conferencing, Webcam Software

Autofocus Clear P T Z also makes an excellent video-conferencing camera and can serve as a high-end choice for webcamming users. In fact, thanks to a unique feature in the control software, you can feed Autofocus Clear P T Z's video to any Windows software designed to work with ordinary USB webcams, making it easy to use Autofocus Clear P T Z with all popular webcam and video-chat software.

ClearPTZ Features

  • Camera's optical zoom extends to a remarkable 27x

  • Automatic focus
  • Max. distance to computer: 500 feet w/ ClearPTZ-500
  • Range of motion: 160 degrees pan, 110 degrees tilt
  • Maximum speed: 53 degrees per second
  • Night vision capability (0.1 LUX)
  • Pan, tilt, zoom and autofocus controlled digitally via USB
  • Use with any Windows computer
  • View video and control motion and zoom from anywhere in the world over the Internet
  • Capture video to hard disk
  • Capture still images at regular intervals
  • View captured images over the Internet
  • Motion alarms, motion-triggered capture

Detailed Optical Specs (Camera module)


  • TV System�: PAL / NTSC
  • Scanning Area�: 3.6mm(H)×2.7mm(V)
  • Picture Element: PAL:752(H)×582(V) NTSC:768(H)×494(V)
  • Horizontal Resolution�: 540TV Lines
  • Minimum Illumination�: 0.1Lux/F1.2
  • S/N Ratio�: More than 48dB
  • Auto Electronic Shutter�: PAL:1/50s-1/100,000s NTSC:1/60s-1/100,000s
  • Auto Iris Control�: 3.9~85.8mm
  • Gamma Characteristic�: 0.45
  • Auto Gain Control�: Auto
  • Auto White Balance�: Menu contorl
  • Back Light Compensation�: Auto
  • Synchronous System�: Internal Synchronization
  • Video Output�: 1.0Vp-p,1.2Vp-p,1.3Vp-p(Pre-items Switch on-off optional)
  • Power Supply�: DC 12V
  • Power Consumption�: 200mA(300mA Control)
  • Operating Temperature�: -10�°~+50�°
  • Dimensions(W×D×H)�: 104mm×58mm×67mm
  • Weight(g)�: 260g
  • Material�: Aluminum alloy

Two Versions/Choices Available:
   1)  Autofocus Clear P T Z-regular
   2)  Autofocus Clear P T Z-500 feet

Autofocus Clear P T Z comes in two versions, both with same price: The Autofocus Clear P T Z-regular and the Autofocus Clear P T Z-500. The difference is how far away from the controlling computer you can place them. Autofocus Clear P T Z-regular comes with a 6-foot cable. Autofocus Clear P T Z-500 is capable of using cables up to 500 feet long. If you choose the Autofocus Clear P T Z-500, you will need to buy your own cables in the length you require. CAT-5 cable (the same kind of cable as is used for Ethernet connections) is used for controlling pan/tilt/zoom. Coax video cable (the same kind of cable as used for connecting regular cable-TV to your television) is used to carry the video signal. Both are readily available at computer and electronics stores.    WE RECOMMEND you only buy the regular one if you do not need the long distance connection.

Autofocus Clear P T Z- 500 feet  $599.99  Buy this

Autofocus Clear P T Z - Regular  $599.99  Buy this

Analog Capture Card $50.00  Buy this

Don't forget your Analog Capture Card...

Purchase Autofocus Clear P T Z

Purchase a Autofocus Clear P T Z at for $699.99, including camera, removable pan/tilt base, and control software.   As with all analog cameras, an analog video capture card is necessary to view and capture video. This purchase page gives you the option of adding a capture card to your order if you need one.


As with all analog cameras, an analog video capture card is necessary to view and capture video.

Installation Notes:
If the Laptop or Desktop has S-Video input (super video, same as on a good VCR), then this camera connects directly to that S-Video.

If your computer does not have S-Video input, then you need to get a converter.   The converter converts video to USB.   Some manufactures are Hauppauge, Pinnacle, Osprey, V-stream.  Do not get Dazzle.

If your computer has USB 2.0, then the converter and video would be better quality.

POWER:  The camera can plug into a wall outlet.  If you don't have one and are in a car/bus, then you can get those 12 volt car/auto adapter.   Plug your laptop and this camera into the 12 volt adapter to get power.

The remote control base always connects to your computer using a USB port/cable.

"QuickStart" Installation Guides:
1)
Remote Control Base (for webcams)
2)  Heavy Duty Remote Control Base (for digital CamCorders Non-Sony)
2b) Heavy Duty Remote Control Base (for digital CamCorders Non-Sony updated)
3)  Heavy Duty Remote Control Base (for digital CamCorders Sony)
4)  Network System and Remote Control Base
5)  IR Infrared Remote Control Base (Uses your TV Universal Remote Control to pan, tilt, rotate)
6)  WEBCAM SETUP on BASE
